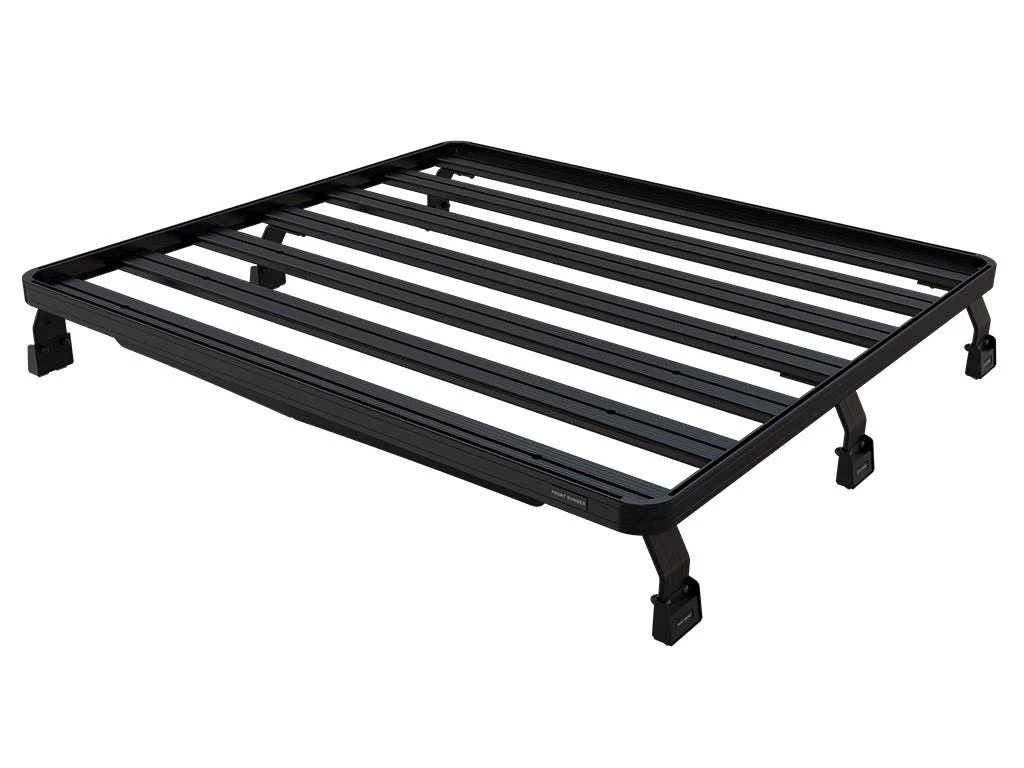

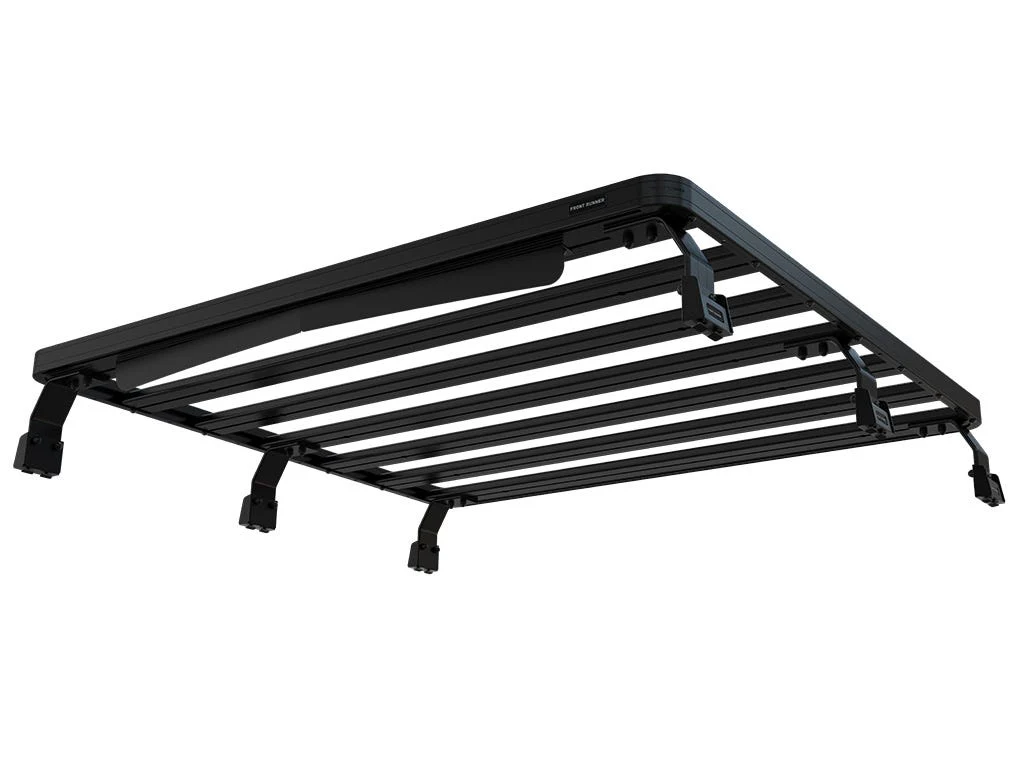

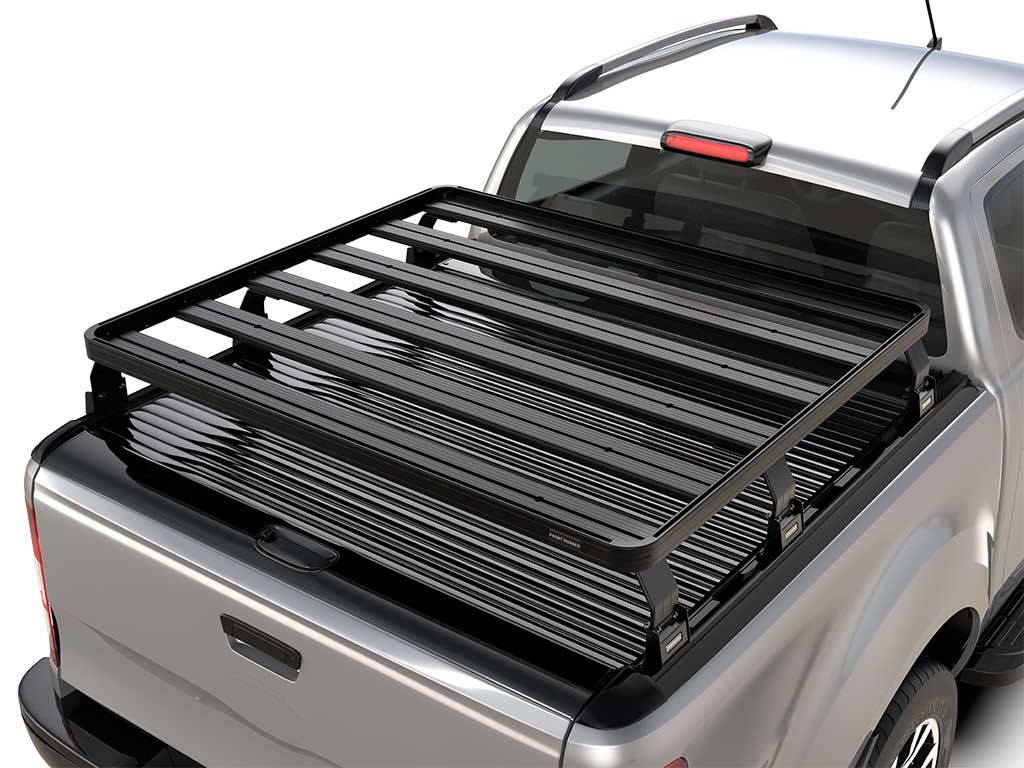

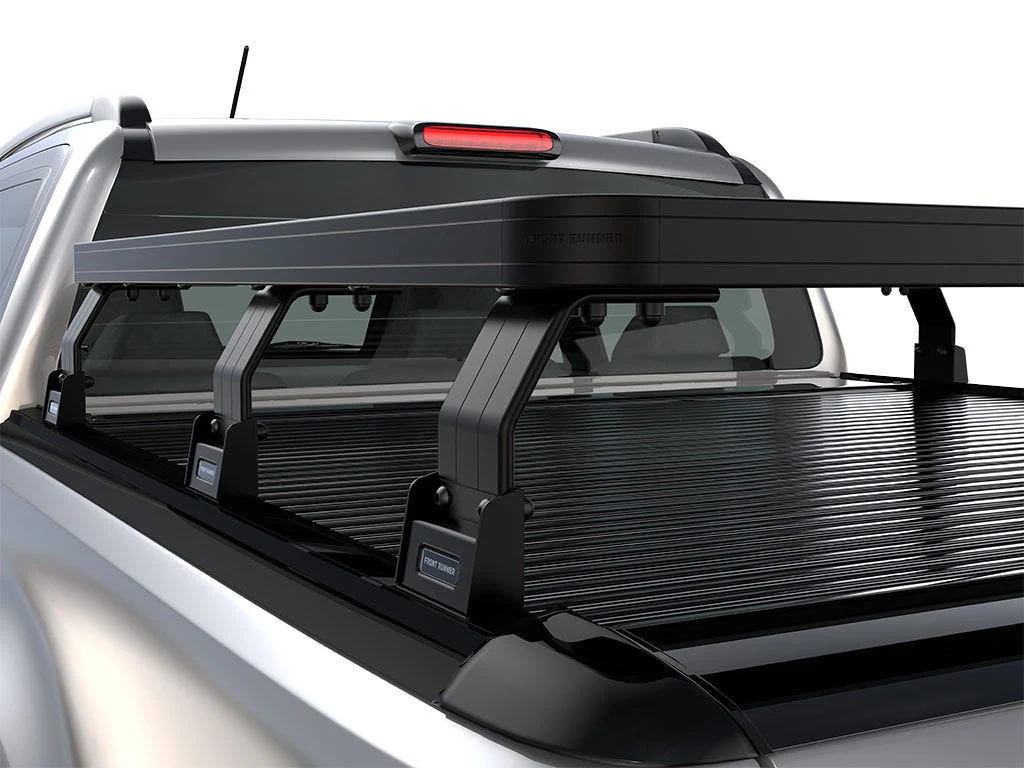

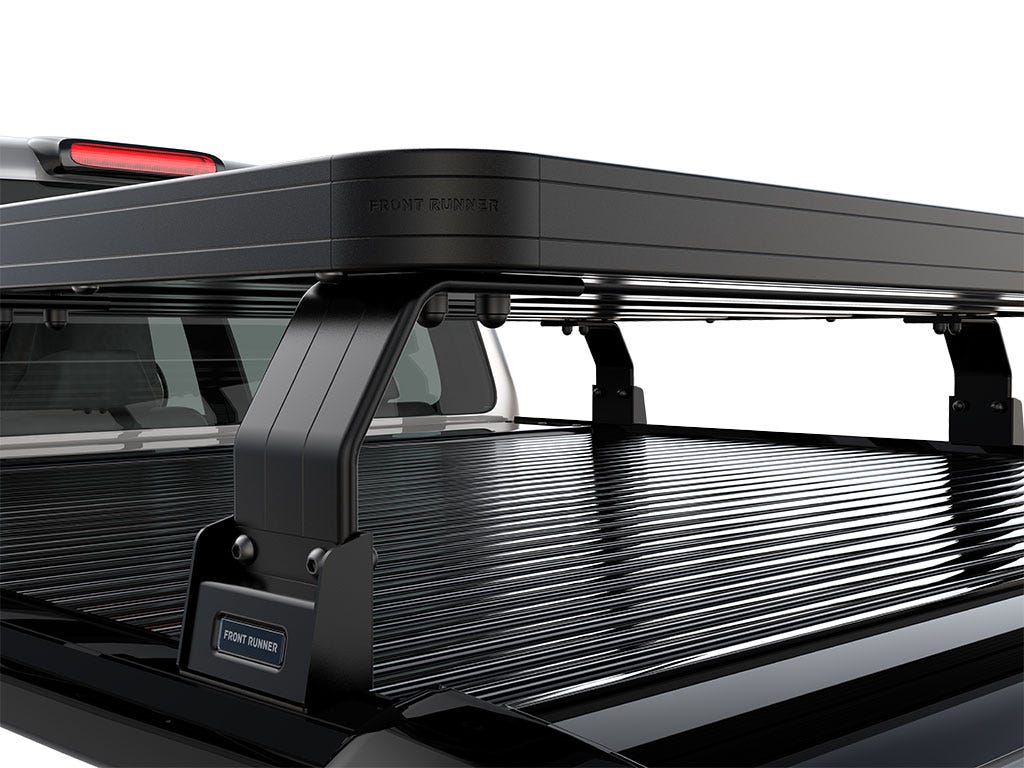

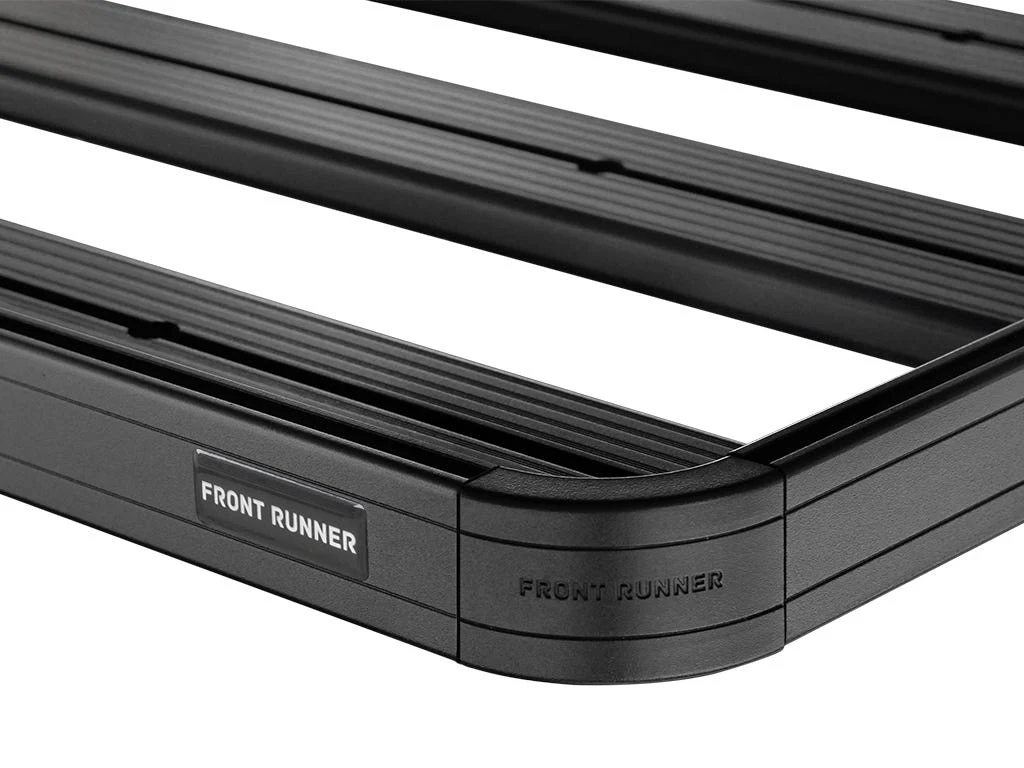

Toyota Hilux (2016-Current) EGR RollTrac Slimline II Load Bed Rack Kit

This kit creates a full-size rack that sits above your Toyota Hilux's load bed when fitted with an EGR RollTrac cover. This Slimline II cargo carrying rack kit contains the Slimline II tray (1475mm x 1358mm) and 6 Pickup Roll Top Leg Mounts that fit into the existing EGR RollTrac channels.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Dometic racks are backed by a 5-year warranty* Note: If your Roll Top extrusion has a 6mm (0.24'') to 7mm (0.28'') slot opening, you may need RRAC962 for installation.

Specifications

KRRT041T - Toyota Hilux (2016-Current) EGR RollTrac Slimline II Load Bed Rack Kit - by Front Runner.

Consists of:
3 x LASS028 - Pick-Up Roll Top Leg Mount
1 x RRSTM07 - SLII Tray - 1475mm(W) × 1358mm(L)

Material used:
Black epoxy powder-coated T6 aluminium
High strength steel

Approximate installed weight:
30.46kg (67.15lbs)

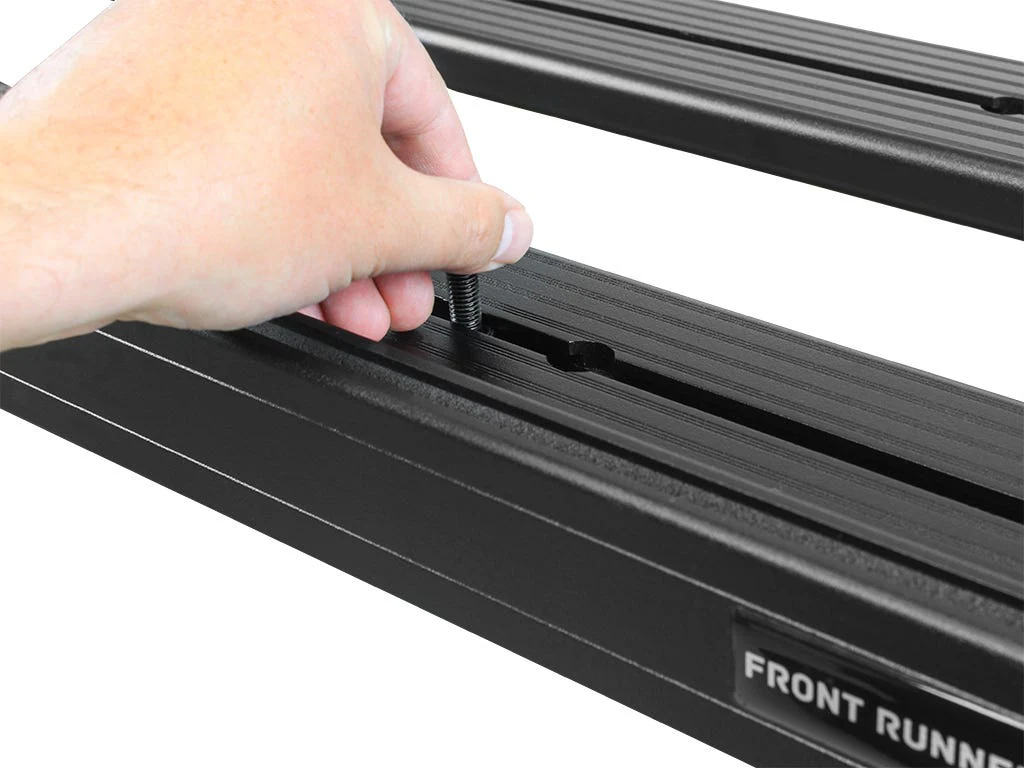

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicle’s roof.

Shipping dimensions:
Width: 445mm (18'')
Length: 1720mm (68'')
Height: 250mm (10'')

Shipping weight:
Weight: 33.2kg (73lbs)

Dimensions: L: 445.0mm × W: 1720.0mm × D: 250.0mm

Weight: 33.20kg
